Bangyi is a trusted manufacturer of high-strength Cattle Fence products, also known as field fence, deer fence, or knotted wire livestock fencing. Designed to withstand the pressures of livestock and varying terrain, our Cattle Fence is fabricated from hot-dipped galvanized Q235 steel wire to ensure long-lasting corrosion resistance and excellent tensile strength. It is ideal for farms, ranches, and wildlife management.
Material
The Cattle Fence is manufactured using high-quality hot-dipped galvanized wire.
- Horizontal Wire Tensile Strength: 80–90 kg/mm²
- Vertical Wire Tensile Strength: 40–50 kg/mm²
This high-tensile design increases structural integrity and enhances longevity, even in demanding agricultural environments.
Knot Types

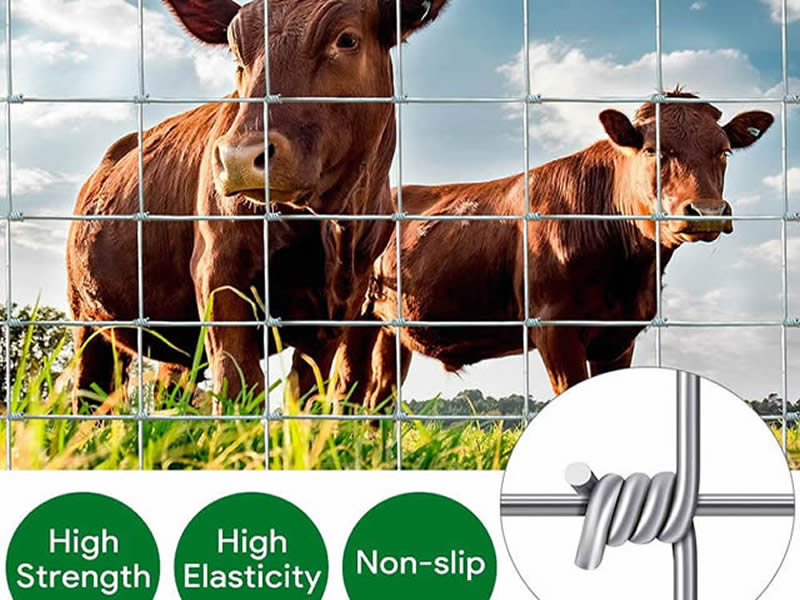

- Monarch Knot: Functions as a hinge, allowing flexibility under pressure and returning to its original shape—ideal for uneven terrain.
- Square Deal Knot: Ensures firm contact between wires for a strong, sag-resistant structure.
- Cross Lock Knot: Provides rigid binding and superior resistance to stress, effective in heavy snow and livestock impact conditions.
Specifications

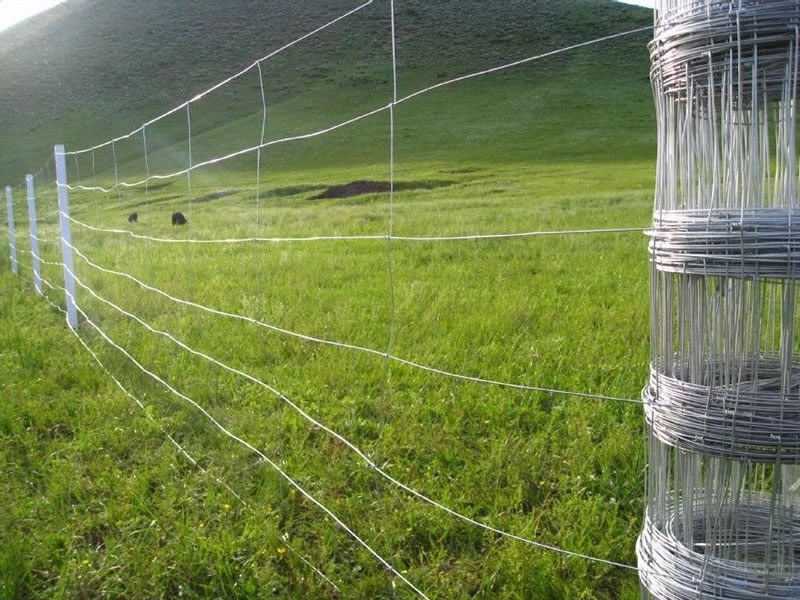

Each fence type includes edge wire diameter of 2.5 mm and inner wire diameter of 2.0 mm. Standard roll length is 50 meters.
- 7/150/813/50: Gradual spacing from 102 mm to 178 mm – Weight: 19.3 kg
- 8/150/902/50: Heights up to 902 mm – Weight: 21.6 kg
- 8/150/1016/50: Vertical spacing includes 203 mm – Weight: 22.6 kg
- 9/150/991/50: Includes 89 mm to 178 mm spacing – Weight: 23.9 kg
- 10/150/1245/50: Tall configuration for enhanced containment – Weight: 26.0 kg
- 11/150/1442/50: Comprehensive vertical increments up to 229 mm – Weight: 30.8 kg
Features
- Resistant to oxidation and corrosion, suitable for long-term outdoor use
- Maintains height and structural rigidity across uneven terrain
- Lightweight yet strong for easier transport and handling
- Designed for maximum airflow and visibility with tight wire integration
- Manufactured using automatic weaving machines for flat, even mesh surfaces
Applications

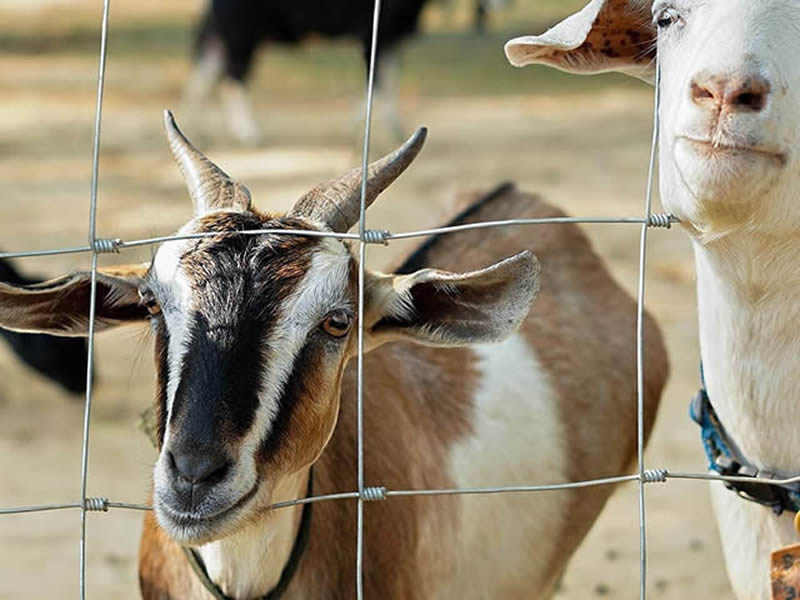

- Cattle, deer, and sheep containment

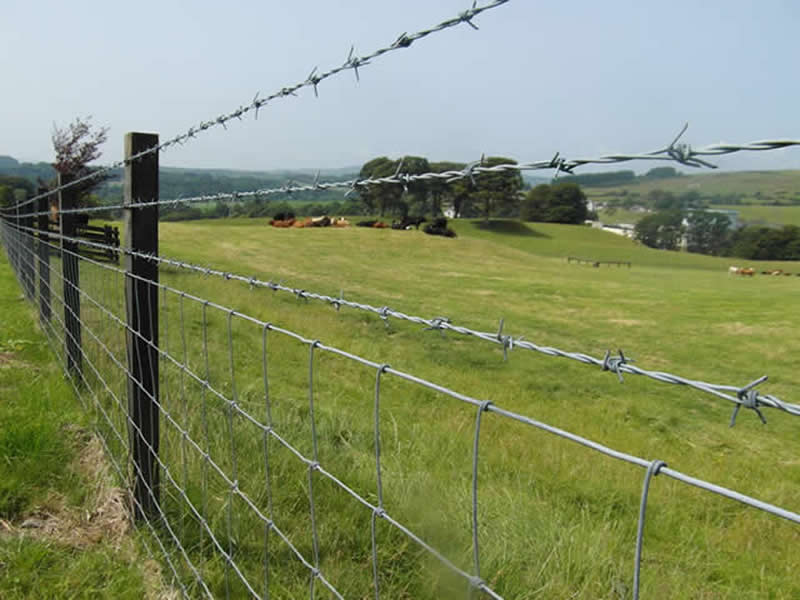

- Field boundary protection
- Wildlife conservation zones
- Agricultural fencing on slopes or rugged terrain
