We are a professional manufacturer of Stainless Steel Expanded Metal Mesh, offering premium mesh solutions designed for use in industrial, architectural, and filtration applications. Manufactured by slitting and stretching stainless steel sheets, our Stainless Steel Expanded Metal Mesh forms durable diamond or custom openings without wasting material. It provides superior corrosion resistance, mechanical strength, and long-term performance in challenging environments.
Material Grades and Surface Options
Our Stainless Steel Expanded Metal Mesh is available in top-grade stainless steel materials including SS201, SS304, SS304L, SS316, and SS316L. These materials are selected for their resistance to rust, acids, alkalis, and high-temperature conditions. Surface finishes are available in standard mill finish, flattened type, or coated options based on application needs.
Thickness and Strand Width Range
We manufacture Stainless Steel Expanded Metal Mesh in a wide range of thicknesses and strand widths to meet varying structural and filtration requirements:
Thickness: From 0.3 mm to 8.0 mm
Strand width: From 0.3 mm to 8.0 mm
Strand type: Standard, reinforced, or customized
These specifications are ideal for both lightweight decorative uses and heavy-duty structural applications.
Opening Types and Mesh Patterns
Our Stainless Steel Expanded Metal Mesh is available in various opening styles and classifications:
Standard diamond (raised)
Flattened mesh (smooth surface)
Micron and micro expanded mesh for fine filtration
Heavy tortoise-shell pattern for reinforced loading
Architectural or custom-shaped mesh for decorative uses
Standard opening sizes include:
- SWD × LWD (Short Way of Diamond × Long Way of Diamond):
2×3 mm, 3×5 mm, 5×10 mm, 10×20 mm, 16×30 mm, 25×50 mm, 40×80 mm, 50×100 mm
Panel and Roll Dimensions
Our Stainless Steel Expanded Metal Mesh is supplied in sheets or rolls to meet various installation requirements:
Sheet width: 0.5 m to 2.7 m
Sheet length: 1.0 m to 3.6 m
Custom sizes: Available upon request for OEM or project-specific needs
These dimensions make the mesh suitable for use in enclosures, platforms, filtration, and screening systems.
Architectural and Industrial Applications
Stainless Steel Expanded Metal Mesh is widely applied in both functional and decorative applications:

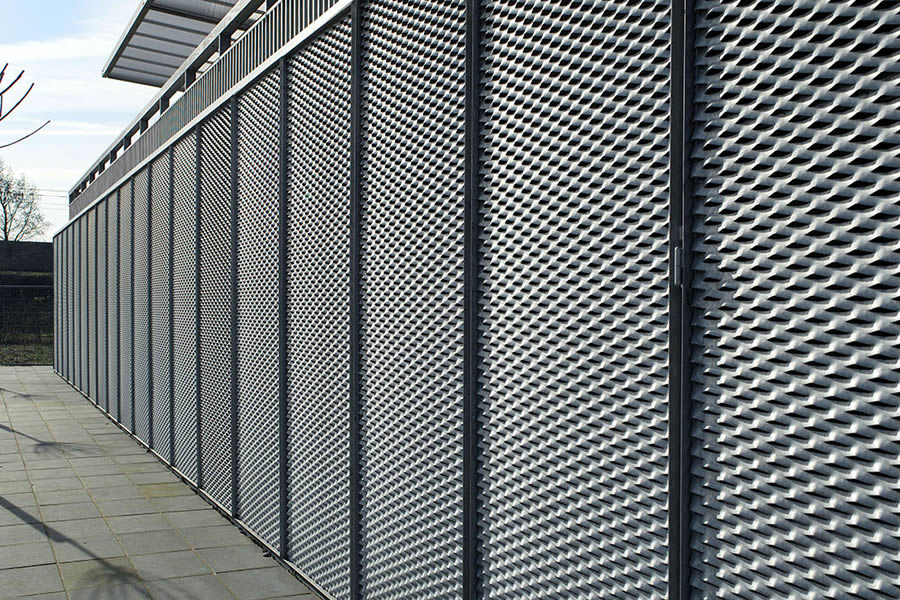

Architecture: Building cladding, sunscreens, ceiling panels, and modern facades
Industry: Filtration sheets, screening panels, battery mesh, machine guards, and ventilation covers
Infrastructure: Anti-slip walkways, stair treads, catwalks, and security fencing
Food and chemical sectors: Filters, strainers, and protective screens in high-hygiene environments
Its strength, ventilation, and anti-corrosive properties make it an ideal alternative to perforated sheets or welded mesh.
Product Styles and Sample Specifications
We offer several pre-designed Stainless Steel Expanded Metal Mesh styles, including:
1/2″ – #18: 0.500″ SWD × 1.260″ LWD, 4×8 ft sheet, 0.040″ strand thickness, 68% open area
3/4″ – #13: 0.923″ SWD × 2.100″ LWD, 4×8 ft sheet, 0.070″ strand thickness, 74% open area
3/2″ – #10: 1.330″ SWD × 3.150″ LWD, 4×8 ft sheet, 0.050″ strand, 83% open area
These options cover a broad range of mechanical and decorative needs, from filtration to floor decking.
Special Features and Advantages
Excellent corrosion resistance for long-lasting outdoor and chemical exposure
Non-slip surface ideal for safety applications in wet or greasy conditions
High strength-to-weight ratio ensures load-bearing performance with reduced weight
Ventilation and visibility make it suitable for safety enclosures and partitions
Custom cuttings and patterns available for design flexibility
Customization and Delivery
We provide custom Stainless Steel Expanded Metal Mesh services tailored to project-specific requirements:
Custom mesh sizes, SWD/LWD dimensions, and thicknesses
CNC-cut shapes, frames, and folded forms
OEM branding, bulk packaging, and international shipping support
